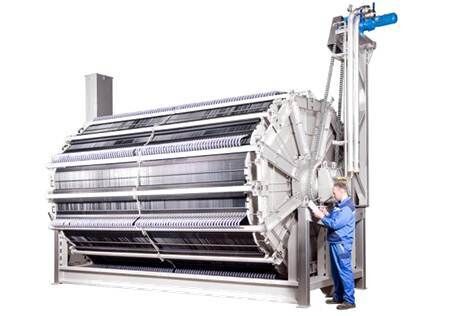

VRM® bioreactorsupplier page

img_products_huber_vrm
Supplied by: HUBER
Flat Sheet (FS) MBR membrane configuration | Polymeric membrane material

Module product series:

  • VRM 20
  • VRM 30

About VRM® bioreactor

Product specification for the VRM 20:

  • Module membrane area: 1801440 m2
  • Module length: 12944807 mm
  • Module width: 2335 (dia) mm
  • Module height: 2335 (dia) mm
  • Number of modules per stack/skid: Single deck

Unique rotating membrane system with two different diameters and variable length according to the number of membrane plates.

Flat Sheet (FS) MBR membrane configuration
Polymeric membrane material | PES
Pore size: 0.038 µm

Module product series:

  • VRM 20
  • VRM 30

Company summary

Head office in Berching, Germany
Operates in Africa, Americas, Asia, Europe and Middle East | Operates worldwide
33,000+ installations worldwide commissioned plants
